Foundation & Basement 1. Soil Test will be done by an Authorised Agency. Based on the soil test report, foundations and columns will be designed by a Structural Consultant. 2. Pest Control Treatment will be done by an Authorised Agency with a minimum warranty period of five years. 3. RCC foundations/columns/plinth beams and plain cement concrete (PCC) for basement as per the design given by the structural consultant. This will conform to IS standards and norms. Concrete preparations shall be carried out at site with Mixer Machine. 4. Basement will be filled/raised with pit sand to a height of 2 feet for the car park area (including the open area of the plot outside the stilt/constructed area) from existing road level. 5. Anti Termite Treatment will be provided for the basement at the time of pouring PCC and external perimeter of the plot under 5 year warranty RCC Roof Slabs and

Beams

6. Clear Height of the Ceiling will be 9 Feet 6 inches. 7. RCC Roof Slabs and Beams will be provided with Ready Mix Concrete as per the design and grade of concrete given by the structural consultant. This will conform to IS standards and norms 8. Reinforcement Steel for Roof Slabs and Beams will be provided as per the design given by the Structural Consultant of FE 550 Grade (Sri Durga or

SURYADEV

or Equivalent brands) Brick Work and

Plastering

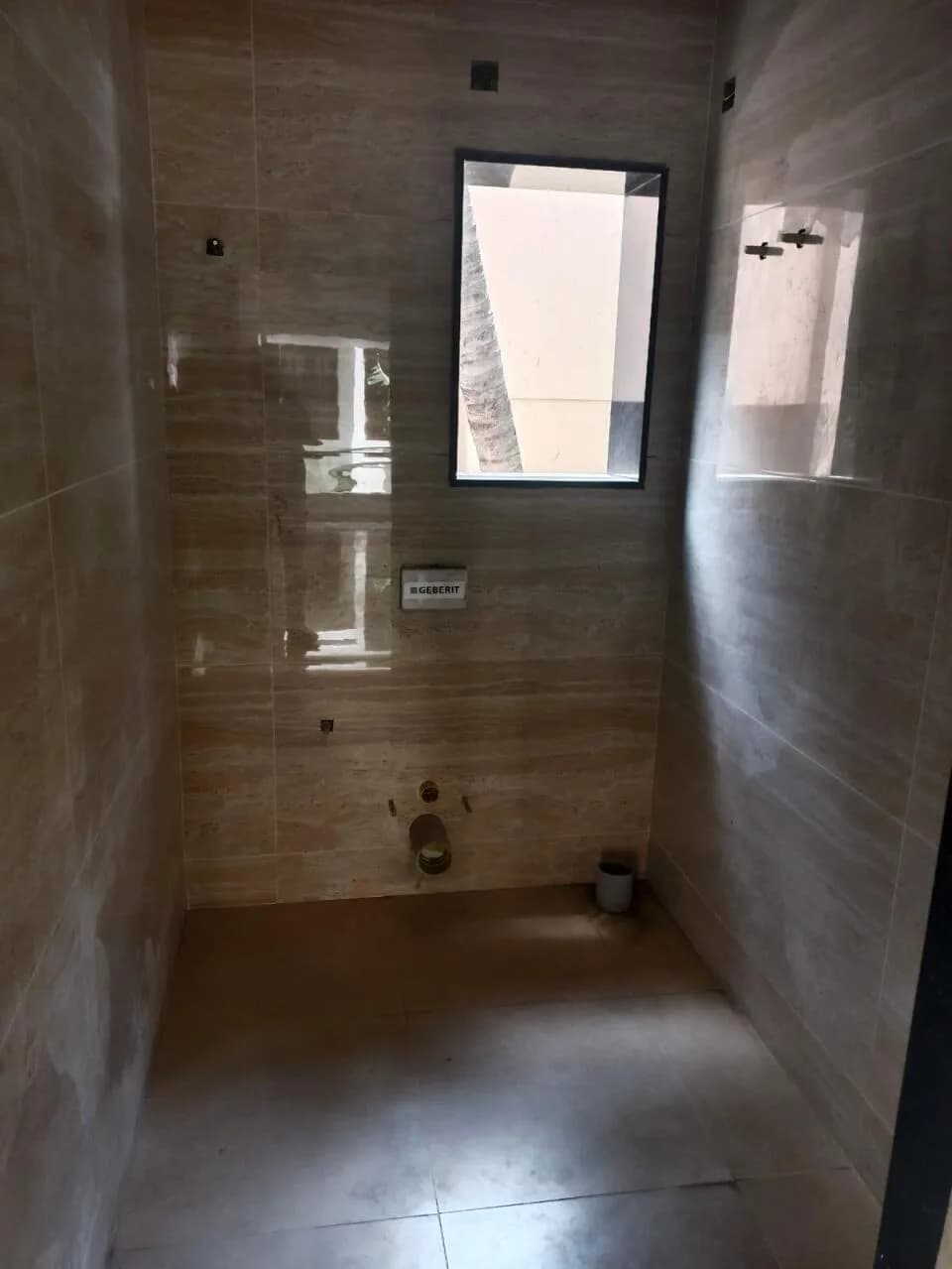

9. 9 inches thick Brick work in Cement Marter 1:5 will be provided for basement and ground floor building area. Height of basement and ground floor shall be as mentioned in Clause 4. 10. All outer walls will be 9 inches thick brick work in cement mortar 1 : 5 and all other internal wall will be 4.5 inches in cement mortar 1 : 4. Bricks will be standard kiln fired bricks. 11.Ceiling rough plastering will be cement mortar 1 : 4/1 : 3 12. All internal walls will be plastered with Cement Marter 1: 4 smooth finish 13.All Bath Rooms and Toilet Area, Flooring will be plastered with water proof chemicals to avoid leakage. 14.All external walls will be
