Omaxe Shubhangan Premium Ext

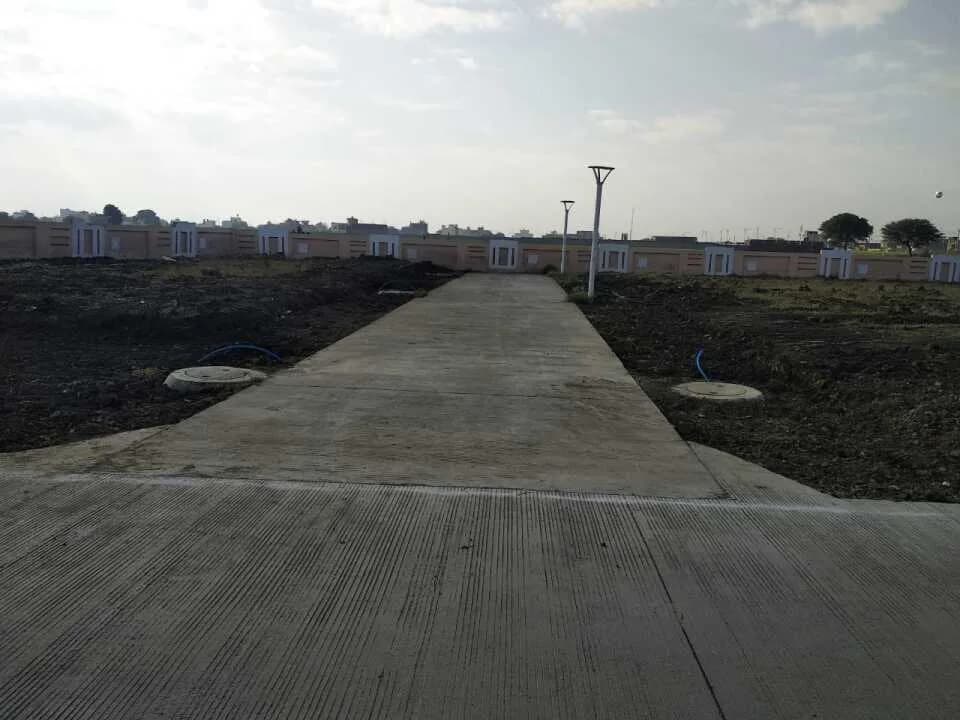

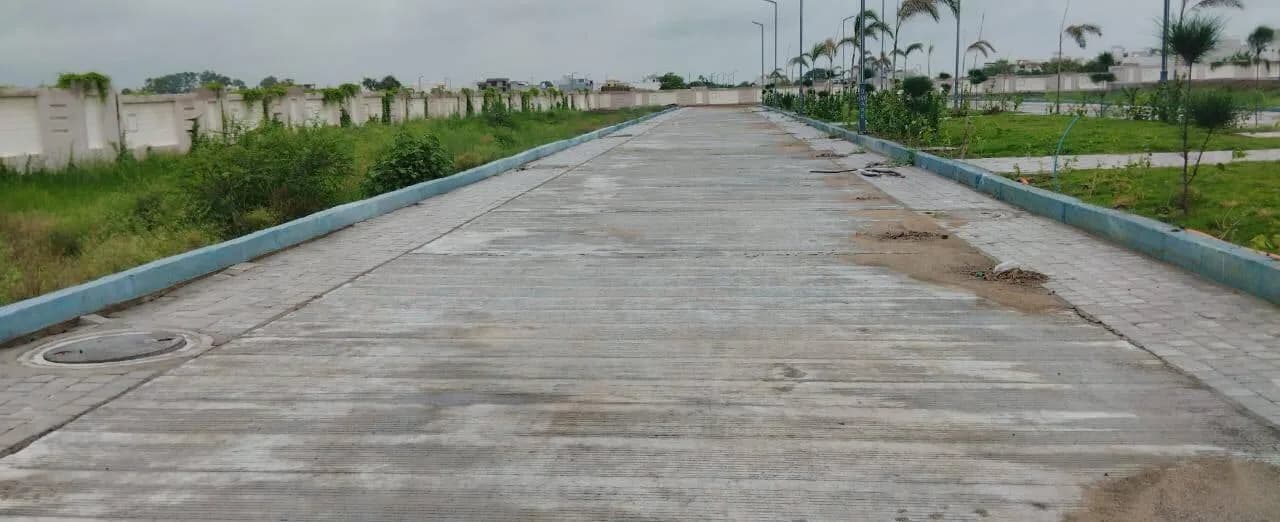

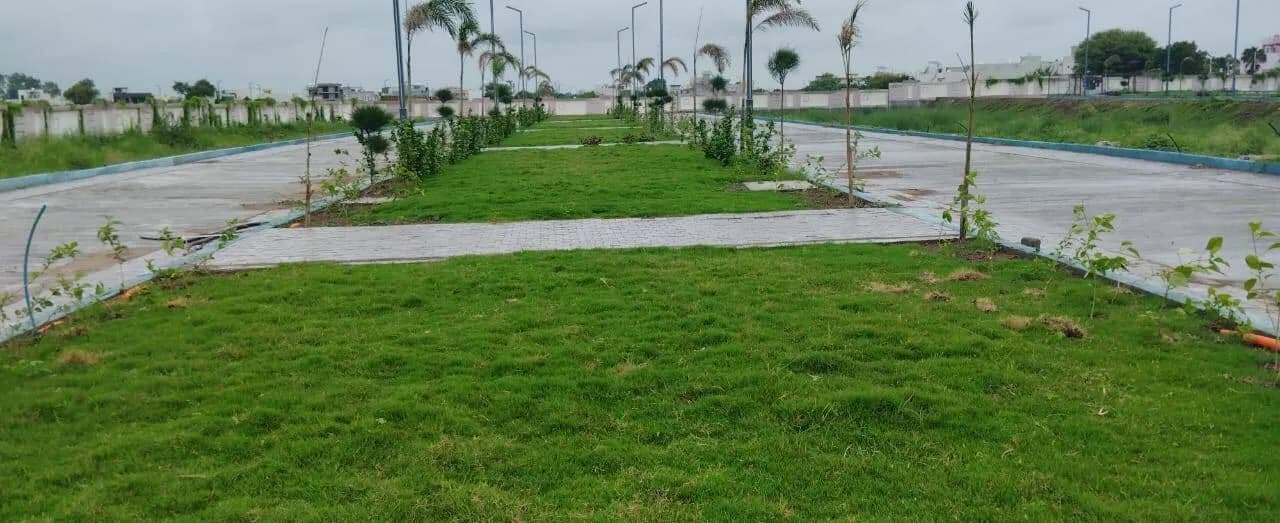

1. Road Work Specification The main road width is 9.00 Mtr. , and other road widths are 9.00 Mtr and 7.5 Mtr. The road construction includes a Sub Base Course of Murom-750 mm Thick. The Base Course consists of GSB-150 mm Thick. The Concrete Work involves

DLC (M-10)-100

mm thick and

PQC (M-40)-200

mm thick. 2. Water Storage and Supply The water storage system includes an Overhead Water Tank with a capacity of 126000 Liter. There is a Sump Well with a 35000 liter capacity and 2 nos. of Tube wells. The Water Supply Lines utilize 110 to 63 mm

HDPE

Pipe (PI-100) for both external and internal supply. 3. Sewage and Disposal Sewage is handled by 200 mm to 300 mm dia DWC Pipe. The Sewage Treatment Plant (STP) has a capacity of 100000 Liter. 4. Electrification Details Electrification is detailed as "As Per Attachment"

(MPEB

Specification). The specifications include Designer Street light Poles with LED lights (7.0 Mtr.). The electrical system incorporates HT Cable (240 sqmm) , LT Cable (150 sqmm) , LT Boxes , and Transformers. It also features Underground piping for cabling and chambers , RMU , and a Feeder Panel and Main panel. 5. Boundary and Entrance The Boundary Wall is constructed using Brick Work with an RCC Beam & Column, reaching a 6 feet height. The Entrance Gate is made with RCC & Brick work and MS Structural steel.
